SPECIFICATION

Model	GP-P650G PG5
Type	Intel Form Factor ATX 12V v3.1
PFC	Active PFC (>0.9 typical)
Input Voltage	100–240 Vac
Input Current	10–6A
Input Frequency	60–50 Hz
Output Capacity	650W
Dimensions	150 × 140 × 86 mm
Fan Type	120mm HYB Fan
80 PLUS	Gold
Efficiency	90% at typical load
MTBF	>100,000 hours
Protections	OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal	100–150 ms
Hold Up Time	>17 ms
Cable Type	Embossed, all black
Connectors	ATX/MB 20+4 Pin × 1 (600mm) CPU/EPS 4+4 Pin × 1 (600mm + 150mm) PCI-e 16 Pin × 1 (500mm) PCI-e 6+2 Pin × 2 (500mm + 150mm) SATA × 6 (420mm + 150mm + 150mm) × 2 4-Pin Peripheral × 3 (420mm + 150mm + 150mm) × 1

Product Information

Shipping & Returns

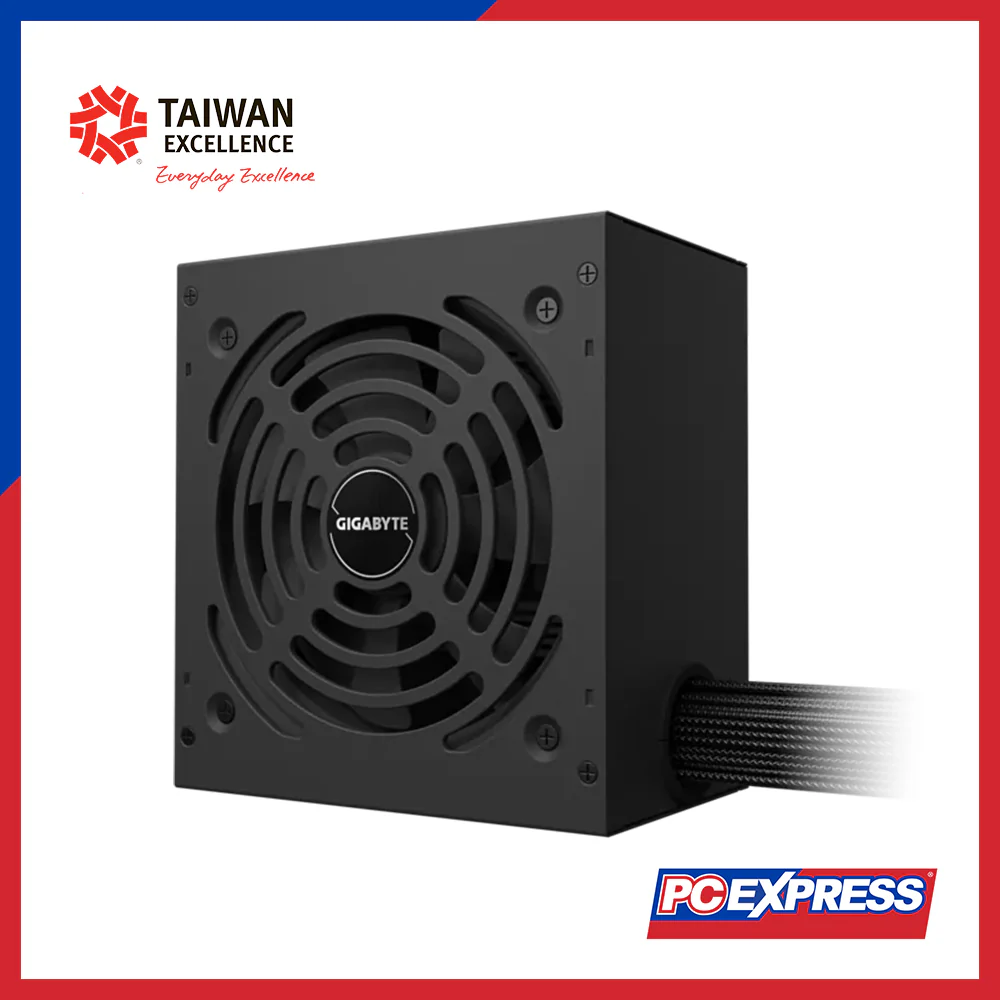

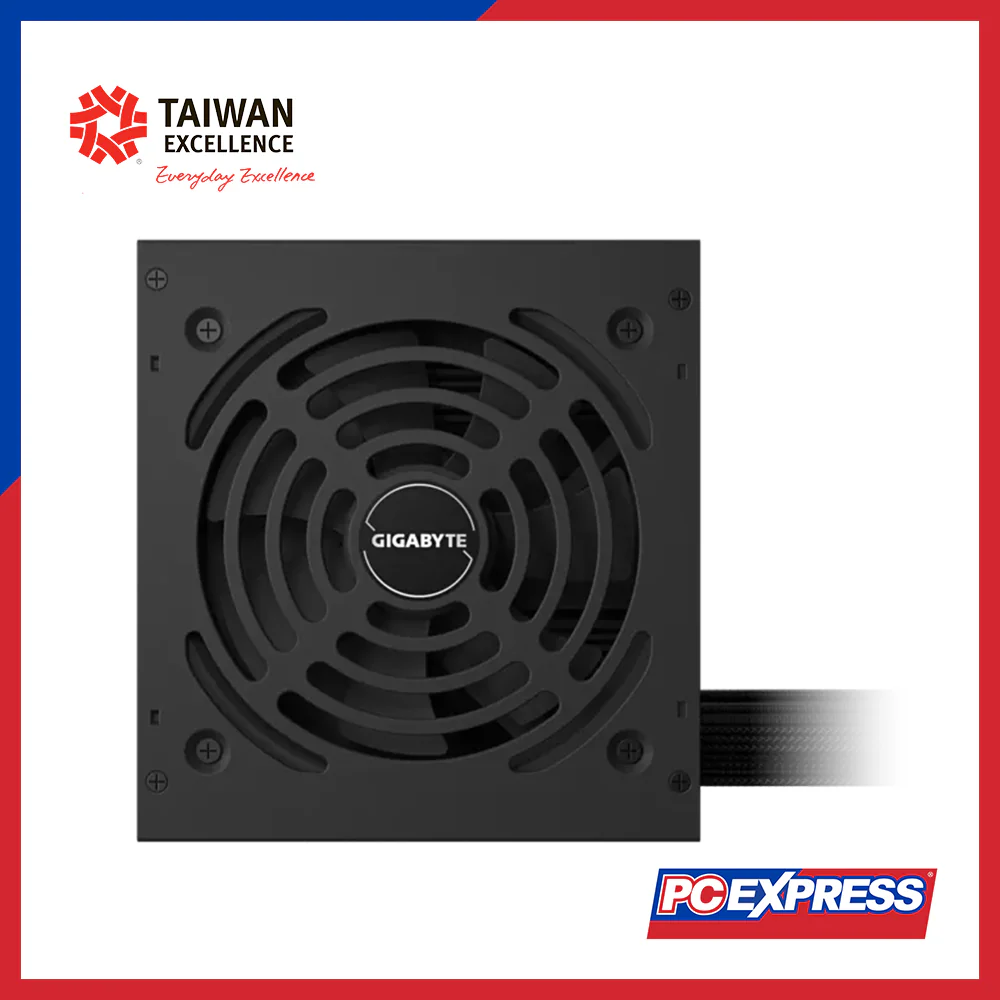

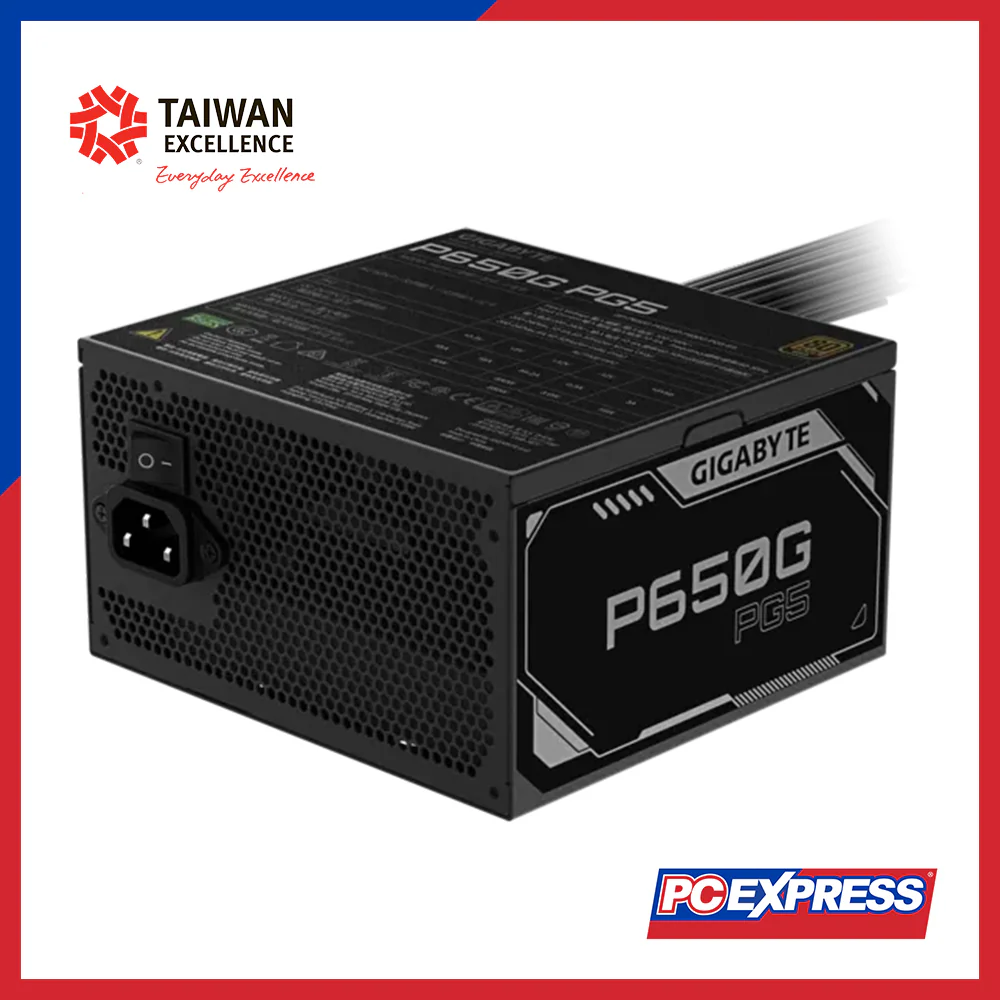

GIGABYTE 650W 80+ Gold (GP-P650G PG5) PCIe 5.1 ATX 3.1 Non-Modular Power Supply

SPECIFICATION

Model	GP-P650G PG5
Type	Intel Form Factor ATX 12V v3.1
PFC	Active PFC (>0.9 typical)
Input Voltage	100–240 Vac
Input Current	10–6A
Input Frequency	60–50 Hz
Output Capacity	650W
Dimensions	150 × 140 × 86 mm
Fan Type	120mm HYB Fan
80 PLUS	Gold
Efficiency	90% at typical load
MTBF	>100,000 hours
Protections	OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal	100–150 ms
Hold Up Time	>17 ms
Cable Type	Embossed, all black
Connectors	ATX/MB 20+4 Pin × 1 (600mm) CPU/EPS 4+4 Pin × 1 (600mm + 150mm) PCI-e 16 Pin × 1 (500mm) PCI-e 6+2 Pin × 2 (500mm + 150mm) SATA × 6 (420mm + 150mm + 150mm) × 2 4-Pin Peripheral × 3 (420mm + 150mm + 150mm) × 1

$18.08

Original: $60.27

-70%

GIGABYTE 650W 80+ Gold (GP-P650G PG5) PCIe 5.1 ATX 3.1 Non-Modular Power Supply—

$60.27

$18.08

Product Information

Shipping & Returns

Description

SPECIFICATION

Model	GP-P650G PG5
Type	Intel Form Factor ATX 12V v3.1
PFC	Active PFC (>0.9 typical)
Input Voltage	100–240 Vac
Input Current	10–6A
Input Frequency	60–50 Hz
Output Capacity	650W
Dimensions	150 × 140 × 86 mm
Fan Type	120mm HYB Fan
80 PLUS	Gold
Efficiency	90% at typical load
MTBF	>100,000 hours
Protections	OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal	100–150 ms
Hold Up Time	>17 ms
Cable Type	Embossed, all black
Connectors	ATX/MB 20+4 Pin × 1 (600mm) CPU/EPS 4+4 Pin × 1 (600mm + 150mm) PCI-e 16 Pin × 1 (500mm) PCI-e 6+2 Pin × 2 (500mm + 150mm) SATA × 6 (420mm + 150mm + 150mm) × 2 4-Pin Peripheral × 3 (420mm + 150mm + 150mm) × 1

GIGABYTE 650W 80+ Gold (GP-P650G PG5) PCIe 5.1 ATX 3.1 Non-Modular Power Supply

SPECIFICATION

Product Information

Shipping & Returns

GIGABYTE 650W 80+ Gold (GP-P650G PG5) PCIe 5.1 ATX 3.1 Non-Modular Power Supply

GIGABYTE 650W 80+ Gold (GP-P650G PG5) PCIe 5.1 ATX 3.1 Non-Modular Power Supply

SPECIFICATION

Product Information

Shipping & Returns

Description

SPECIFICATION
